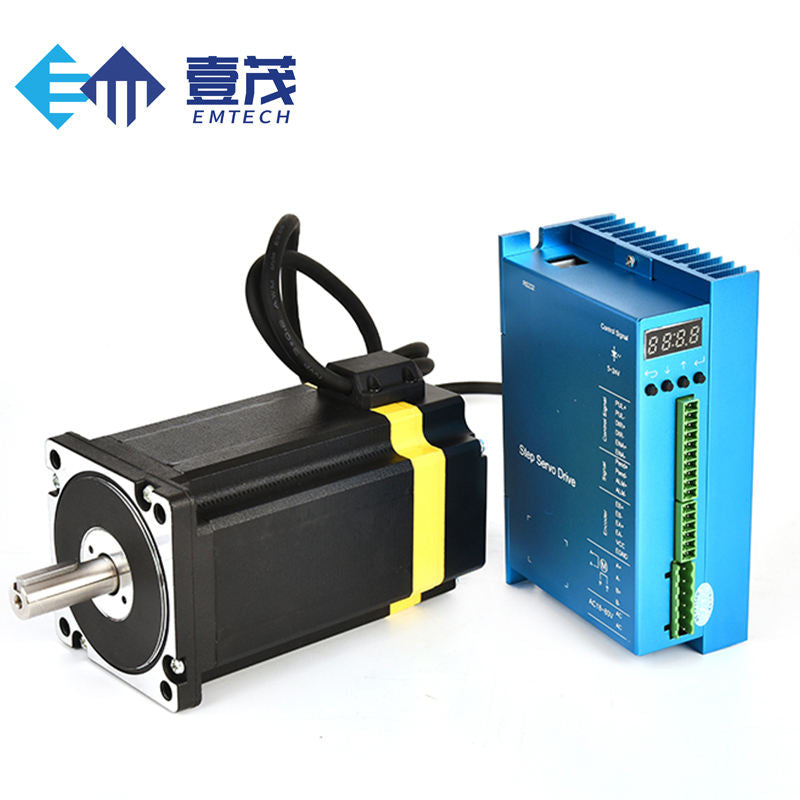

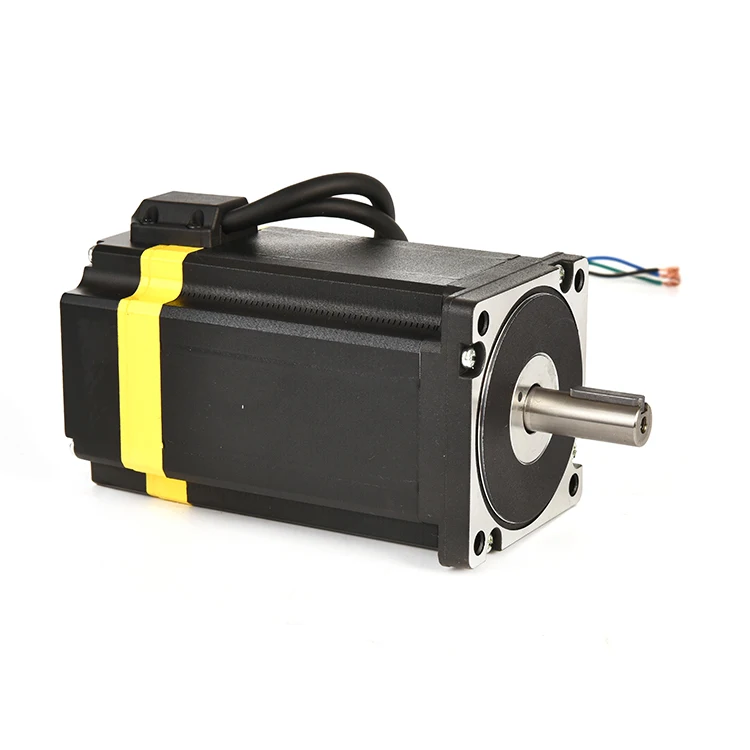

NEMA34 Hybrid Servo Step Motor 8.5 N.m High Torque 86X118mm Closed Loop Stepper Motor for Sewing Machine
$948.76
Skip to product information
NEMA34 Hybrid Servo Step Motor 8.5 N.m High Torque 86X118mm Closed Loop Stepper Motor for Sewing Machine
$948.76
Product Description
GENERAL SPECIFICATIONS
|
Item
|
Specifications
|
|
Step Angle Accuracy
|
±5%
|
|
Resistance Accuracy
|
±10%
|
|
Inductance Accuracy
|
±20%
|
|
Temperature Rise
|
80C Max
|
|
Ambient Temperature
|
-20℃~+50℃
|
|
Insulation Resistance
|
100MQMin 500VDC
|
|
Dielectric Strength
|
500V AC 1minute
|
|
Allowable Radial Load
|
0.02mm Max. (450g load)
|
|
Allowable Thrust Load
|
0.08mm Max. (450g load)
|
Dimension

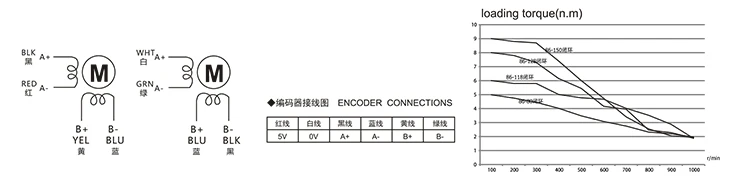

Connections&Frequency-Torque Characteristice
Specifications
|
Mode
|
Stepangle
(°)
|
Length
(mm)
|
Voltage V
|
Current A/phase
|
Resistance
Ω/phase
|
lnductance mH/phase
|
Hold torque
N.m
|
Rotor inertia
g.cm2
|
weight kg
|
|
86BYG250-80
|
1.8
|
80
|
2.5
|
6
|
0.42
|
2.4
|
5
|
1400
|
2.8
|
|

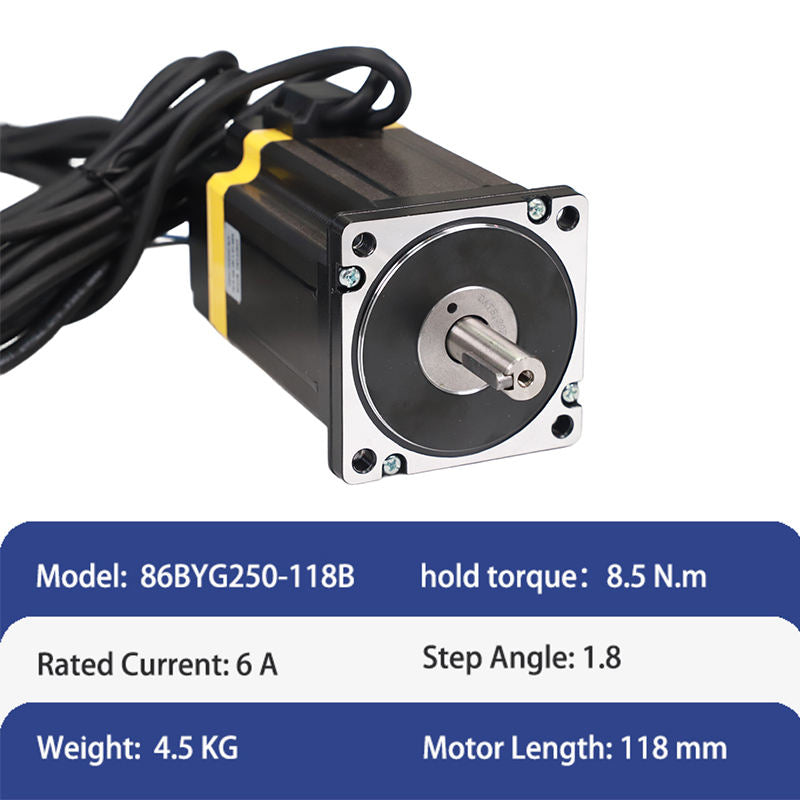

86BYG250-118
|
118
|
3.1
|
6
|
0.52
|
4.16
|
8.5
|
2100
|
4.5
|
|
|
86BYG250-128
|
128
|
4.2
|
6
|
0.7
|
7.3
|
10
|
3200
|
5.0
|
|
|
86BYG250-150
|
150
|
4.1
|
6
|
0.69
|
7.2
|
12.5
|
4000
|
5.9
|
Motor Applications
