Custom Stainless Steel and Aluminium Parts Fabrication Via CNC Spinning Utilizing Metal Spinning Machine
$500,682.19
跳至产品信息
Custom Stainless Steel and Aluminium Parts Fabrication Via CNC Spinning Utilizing Metal Spinning Machine
$500,682.19
Product Description
Specification
|

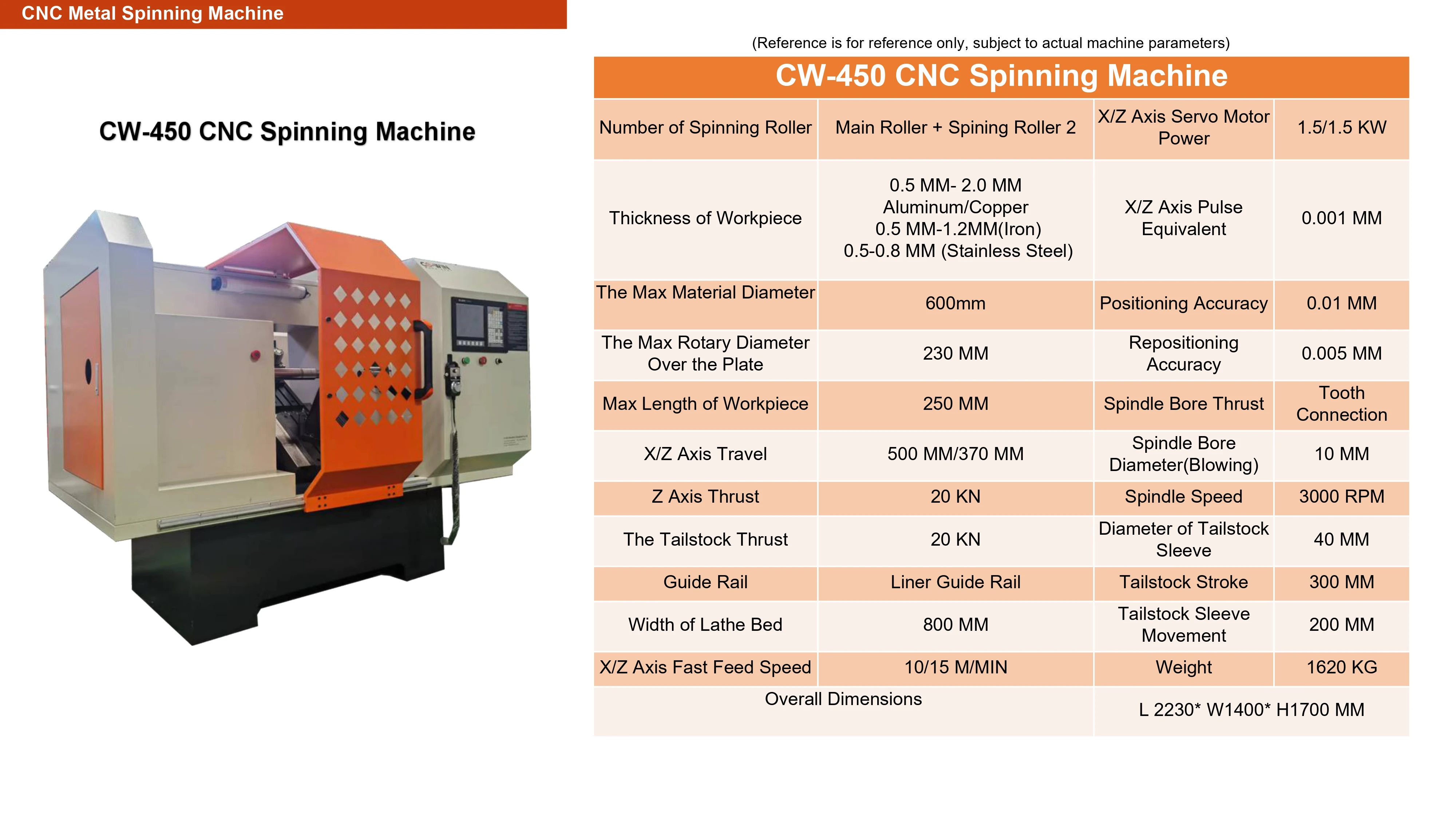

CW-450 CNC Spinning Machine
|
|||
|
Number of Spinning Roller
|
Main Roller + Spining Roller 2
|
X/Z Axis Servo Motor Power
|
1.5/1.5 KW
|
|
Thickness of Workpiece
|
0.5 MM- 2.0 MM Aluminum/Copper
0.5 MM-1.2MM(Iron) 0.5-0.8 MM (Stainless Steel) |
X/Z Axis Pulse Equivalent
|
0.001 MM
|
|
The Max Material Diameter
|
600mm
|
Positioning Accuracy
|
0.01 MM
|
|
The Max Rotary Diameter Over the Plate
|
230 MM
|
Repositioning Accuracy
|
0.005 MM
|
|
Max Length of Workpiece
|
250 MM
|
Spindle Bore Thrust
|
Tooth Connection
|
|
X/Z Axis Travel
|
500 MM/370 MM
|
Spindle Bore Diameter(Blowing)
|
10 MM
|
|
Z Axis Thrust
|
20 KN
|
Spindle Speed
|
3000 RPM
|
|
The Tailstock Thrust
|
20 KN
|
Diameter of Tailstock Sleeve
|
40 MM
|
|
Guide Rail
|
Liner Guide Rail
|
Tailstock Stroke
|
300 MM
|
|
Width of Lathe Bed
|
800 MM
|
Tailstock Sleeve Movement
|
200 MM
|
|
X/Z Axis Fast Feed Speed
|
10/15 M/MIN
|
Weight
|
1620 KG
|
|
Overall Dimensions
|
L 2230* W1400* H1700 MM
|
||
